Alaska Railroad P-30
by Pat Durand.
E9B, B/N 23191, was built in May 1957 to be Illinois
Central #4108. The locomotive stayed on the roster as ICG 4108 until converted
to HEP power car by ICG in September 1981. Four diesel generator sets were
installed to power new electrical heating and air conditioned passenger equipment.
Purchased by the Alaska Railroad in the early 80's and was lettered HEP-1 upon arrival in Alaska. P-30 carried four different paint jobs on the Alaska Railroad. The two Anchorage, Fairbanks passenger consists were sent out of Alaska to be rebuilt over a two year span.
According to Robert Krol, "The refurbished train set had the round ARR
logo applied in the yellow window band. and were painted yellow and blue versus
the
original more gold UP yellow. The P-30 also entered service with the
refurbished train set. Until the 1503 was rebuilt, the P-30 was the only source
of HEP and
was always in the consist with the refurbished train".
Another overhaul was reported 12/21/2000 per Robert Krol ARR bid for overhaul of P-30 Power Car.A rider reported a typical summer consist as follows: "I boarded the Glacier Discover for the trip to Whittier. The day's consist was: #2007 on the point, P-30 a converted EMD B unit for the power car, diner #300, coach #200, coach #202, and coach #210."
In March 2002 P-30 went into the Anchorage shop and the six wheel trucks were changed to 4 wheel Blombergs without traction motors. This created a rather unique looking E/9.
Alaska Railroad electrician Bob Focht reported: "I took the P-30 picture
when I road the 'ski train' last month. It's a leased
train for the Nordic Ski Club, and we take them down to the Grandview
siding,
then they get
off and ski for about 5-6 hours. We sit there on the train, enjoy
the view, take lots of pictures and wait for them to get back.
We had the
551, 552, 553, 554,
351, 352, Tiki, six of our Vista domes, two bag cars and P-30.
Our power was the 3013, 3014, and 3009."
As of February 2011 P-30 is on deadline slated for retirement.

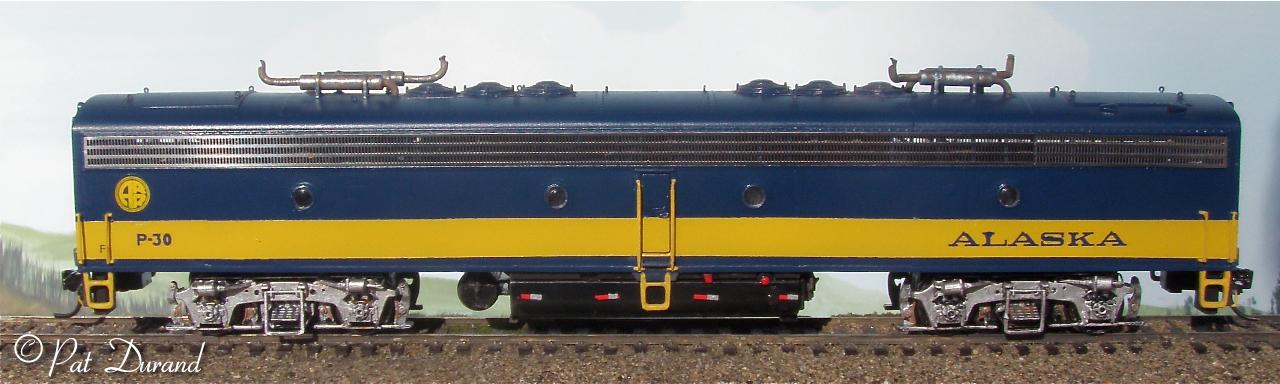

Alaska Railroad P-30
as of 10/2010 Model by Pat Durand March
2011.
P-30 in HO scale started out a parts left over from two Proto
2000 Life like E8/9 A units. Undecorated B units are scarce.
The body
was modified
after
the skirts were removed and mounting pads were added inside
each corner. These
were drilled and tapped for a 0-80 screw at each corner.
The most difficult part of the model body work was removing
all the batten strips except the top rail below the screens
and the
bottom
rail. The prototypes
for
the P6 and P30 were all slab sided. The pressed corregations
were also removed from each end and the doors modified
with Details West inserts.
Converting to the four wheel Blomberg trucks was a simple
job of cutting down one drive line link and some grinding
on the
frame.
Because the
gear tower
on the P2K Blomberg Truck is lower than the six wheel truck,
grind a dish in the
top of the frame above the bolster to make room for the
drive line coupling.

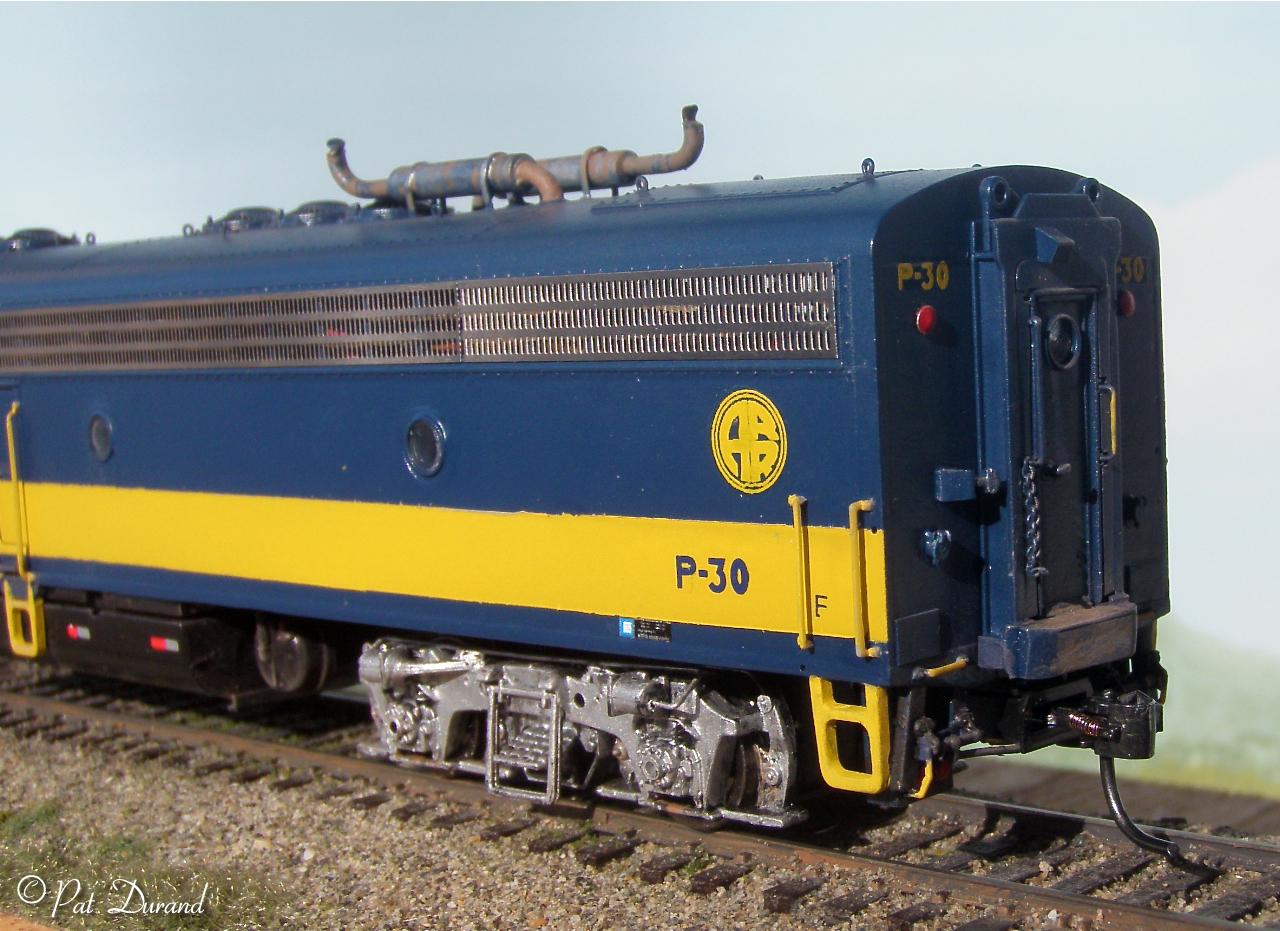

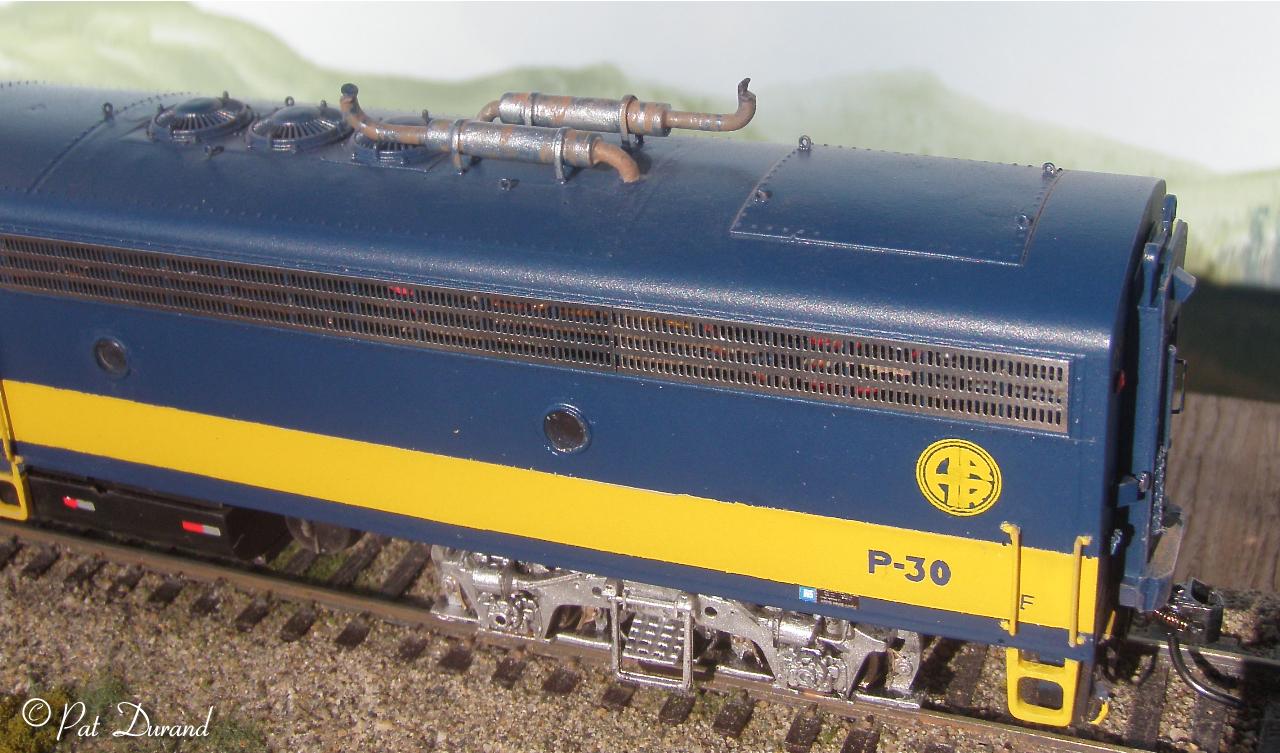

Mufflers on each end of the roof are the same size but
the stacks on the front end come out strait and
turn up. On the
rear end
they bend
out and
then up.
I made these from brass tube and solid 14 gauge
wire to facilitate the bends.
Unlike the prototype, my P-30 is fully powered and weighs 28 ounces. With a passenger train consist approaching 16 units the extra power is needed up front. Yes she is a "power car" with out a prime mover.
Patrick J. Durand
