ARR Creations Durand's #3013


	1/26/98

No. 3013 EMD GP 40-2 Serial # 777093-2 was aquired new from EMD in 1978. Model is as of July 1995 based on photos by Randy Thompson. The prototype has since been painted in the quarter pounder scheme.

Casey Durand started this model and did most of the work and painting. Old dad, Pat just finished it up with glazing, wipers and paint and the builders photos.

Project starts with an Athern GP40-2 .

Parts list for making the modifications:

Detail Associates

DA FA2013 Winterization Hatch. This was shortened and horizontal bars added.
DA TK2808 Speed Recorders 4 ea These simulate the limited slip hardware.
DA FL2902 Stratolite Beacon
DA FU3101 Fuel Gauge

Detail West

DW HL-116 Headlight
DW RA 274 Small Sinclair
DW RA 157 Firecracker Antenna
DW SL 172 Steplites

Minatures by Eric
Horn H23
or
Overland #9016

A-Line 29200 Wipers Derlin Windshield.

Sand lines were added to each end of trucks mounted on the brakehangers

The cab windows were modified to match prototype photos from 1995.

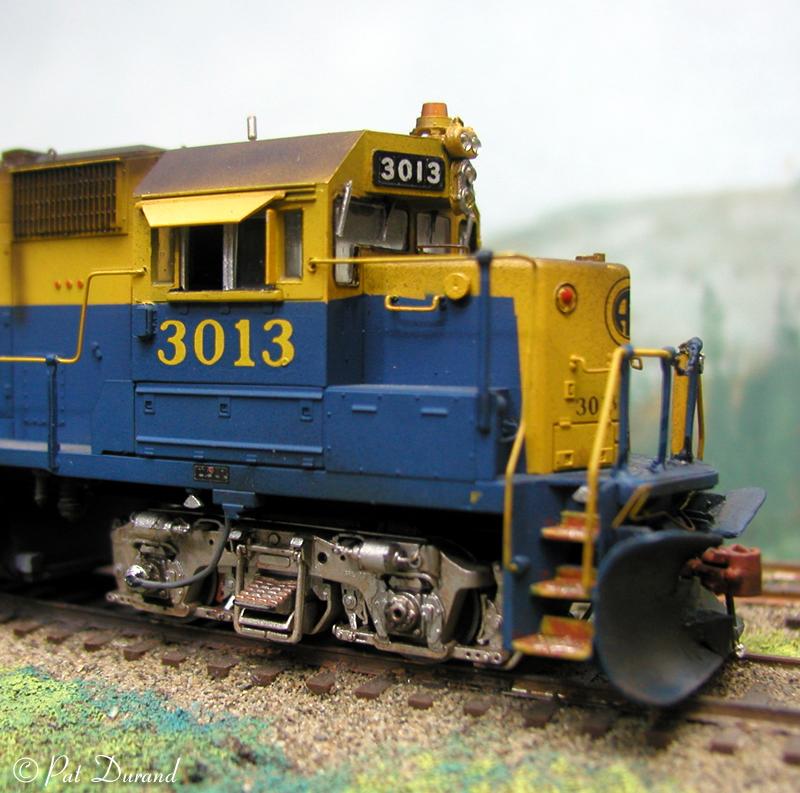

The snow plow was fabricated from styrene layers following the pointers in the plow tips section.
