![image](2473-View-from-tender-top_tn.jpg) |
![image](2439-Scraping-tender-top_tn.jpg) |

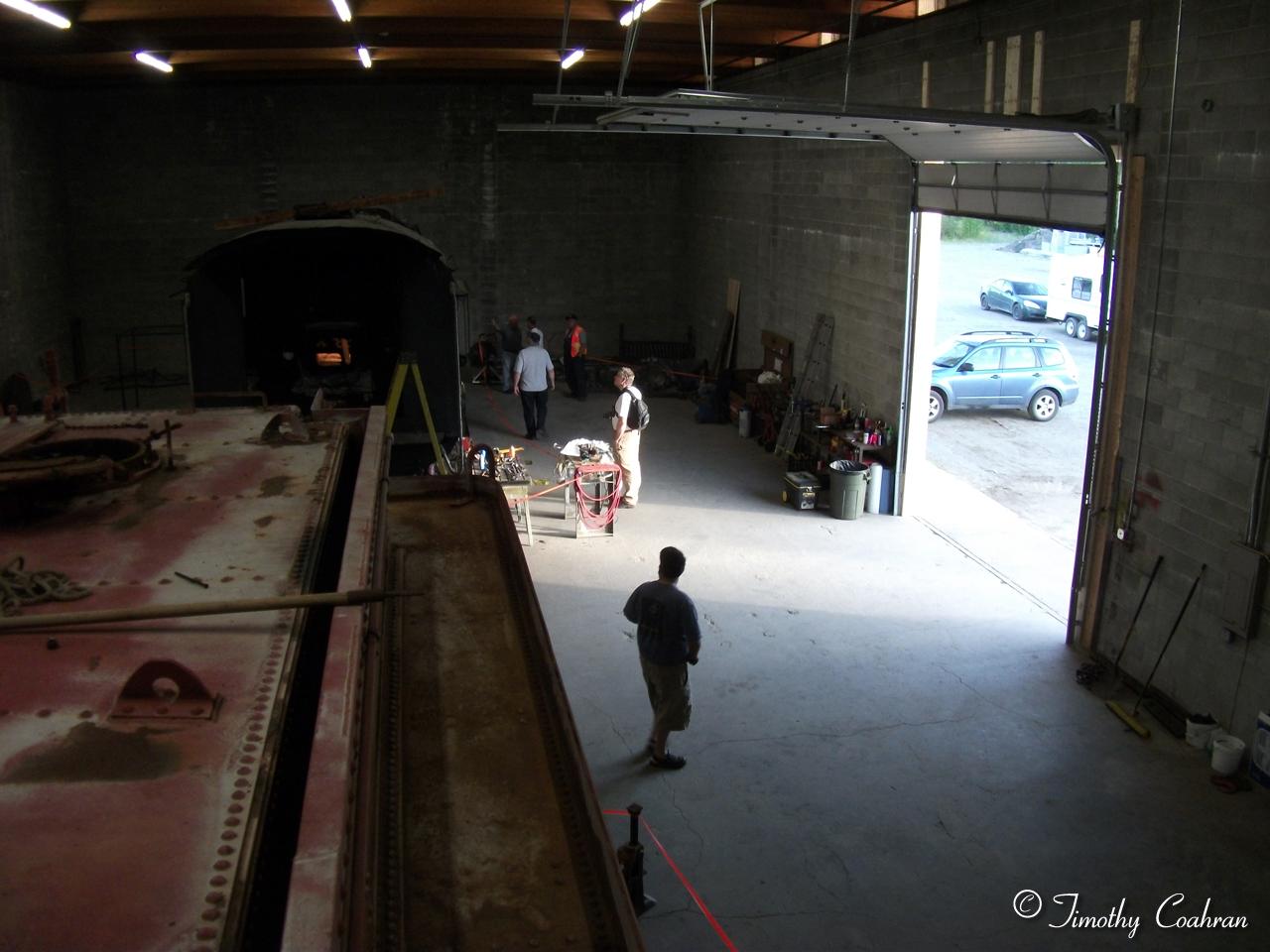

View from the top. Note lighting in the locomotive firebox. |

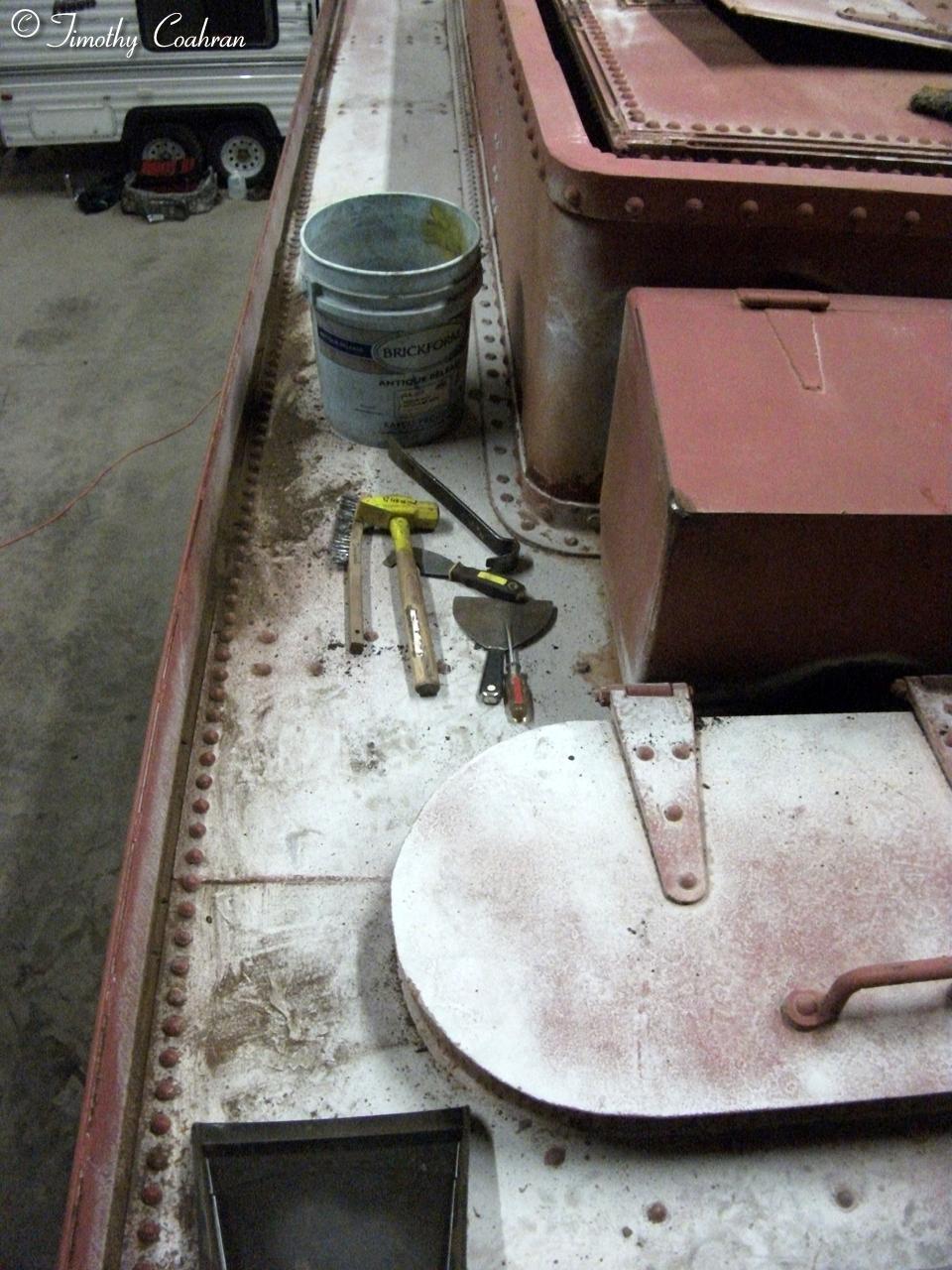

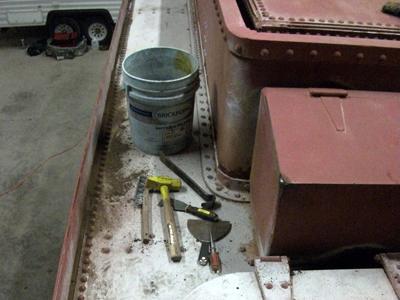

Chipping the tender top to remove hardened "Bunker C." |
![image](2440-This-stuff_tn.jpg) |
![image](2443-Water-tank-door_tn.jpg) |

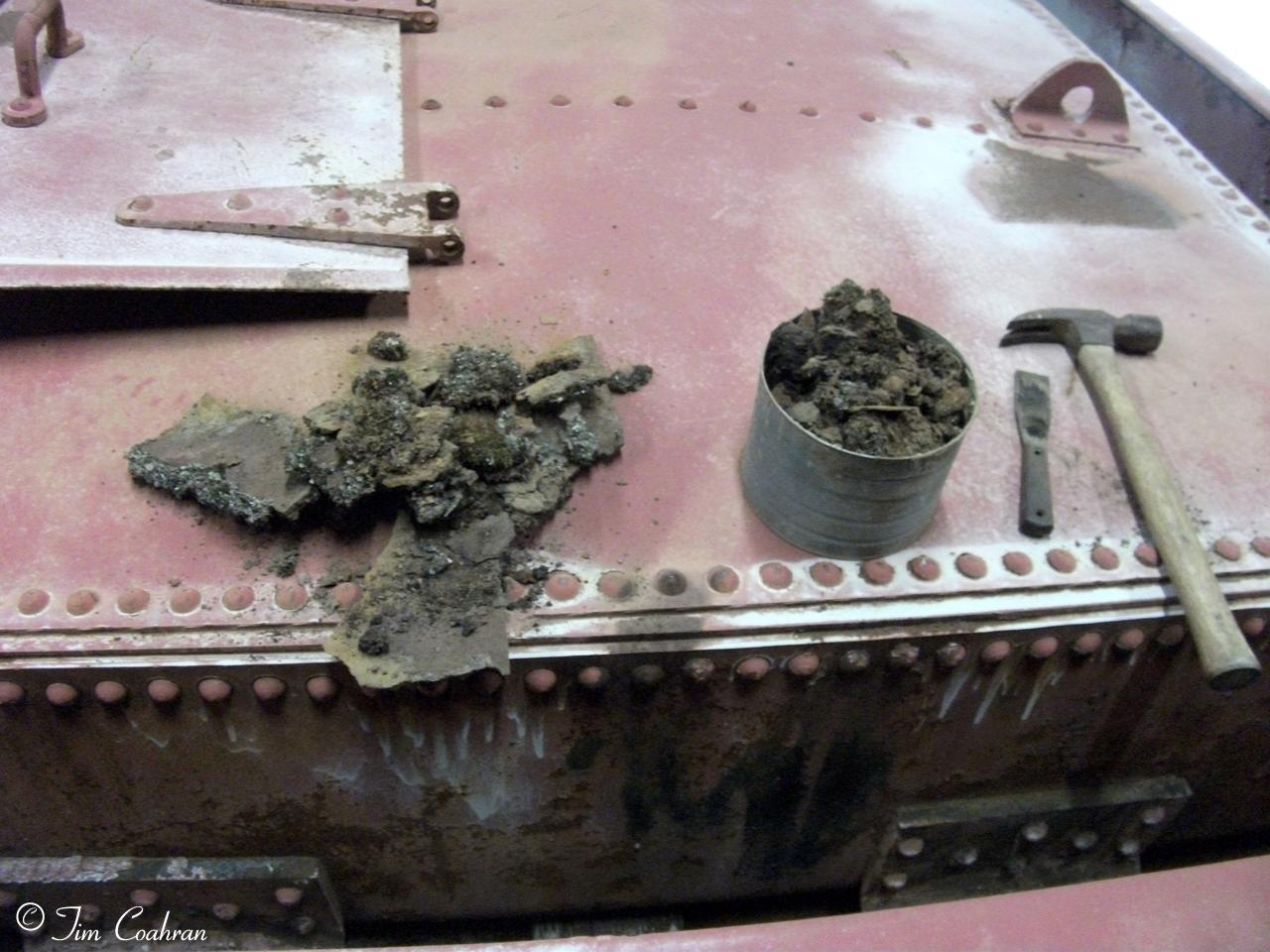

This stuff would make good pavement! |

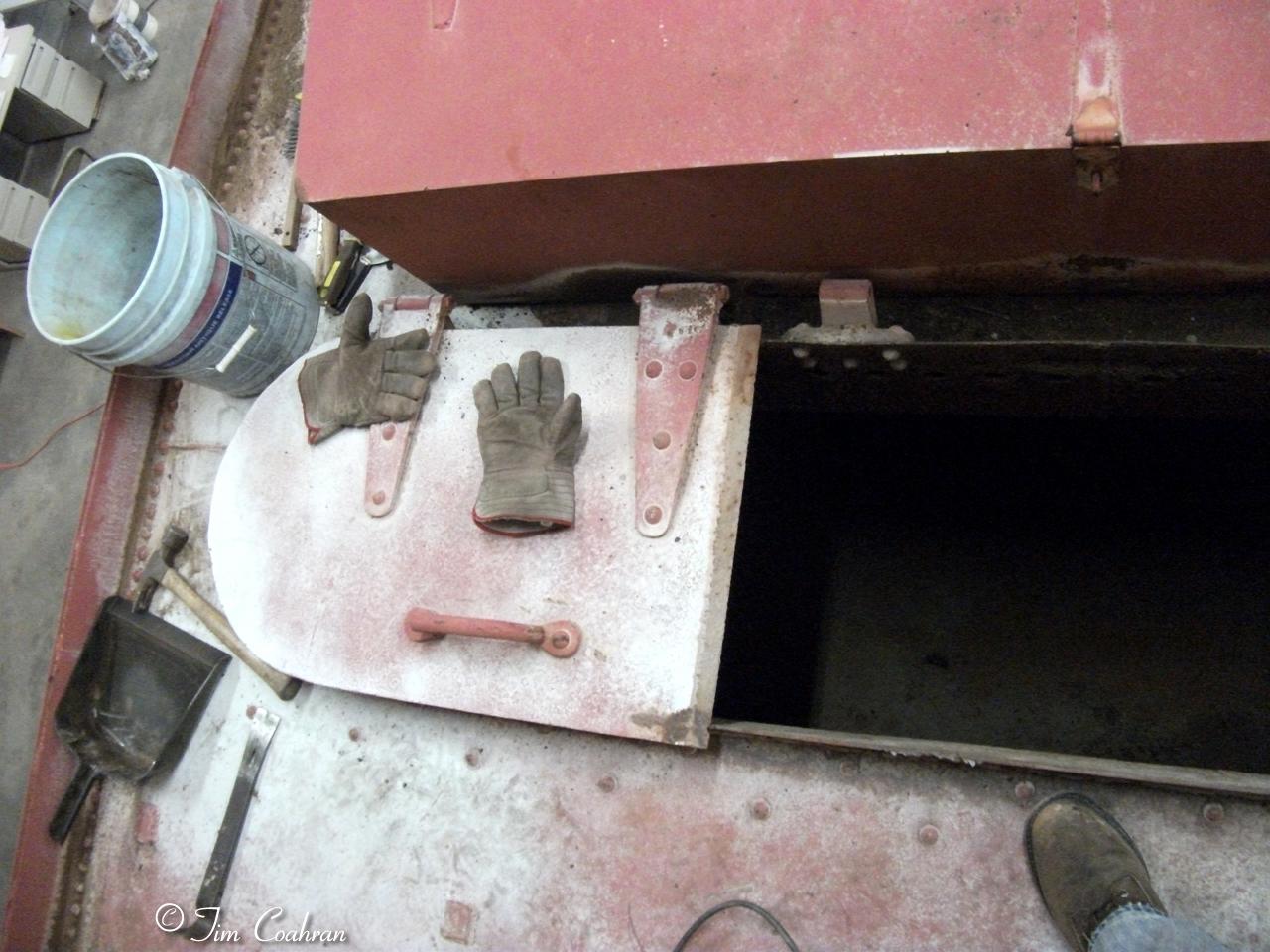

Water tank door welded shut. Note weld completely filling the right hinge. |
![image](2447-Hinge-before_tn.jpg) |
![image](2449-Grinding-into_tn.jpg) |

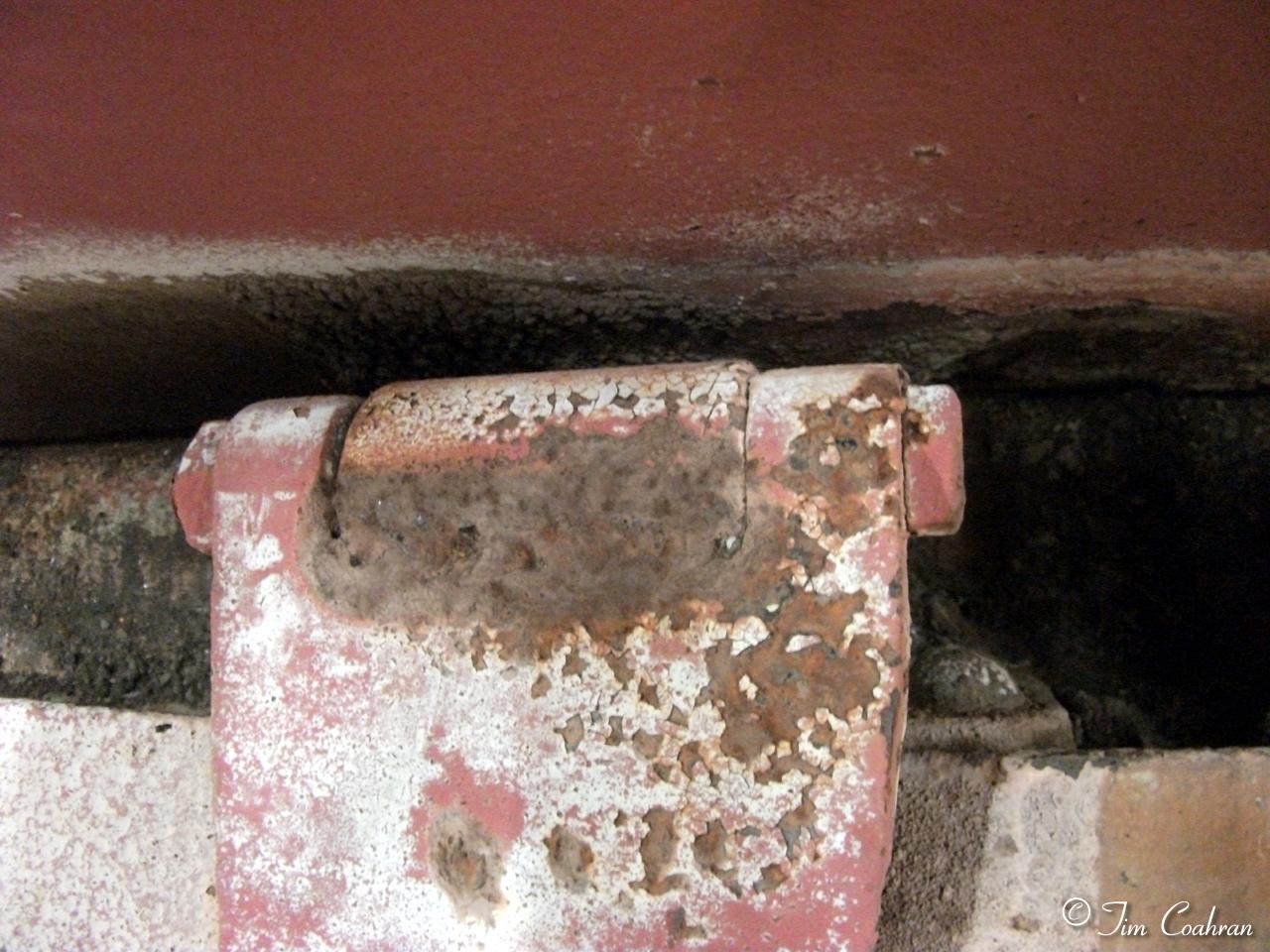

Hinge before grinding into weld. This will require some precise grinding to avoid causing damage. |

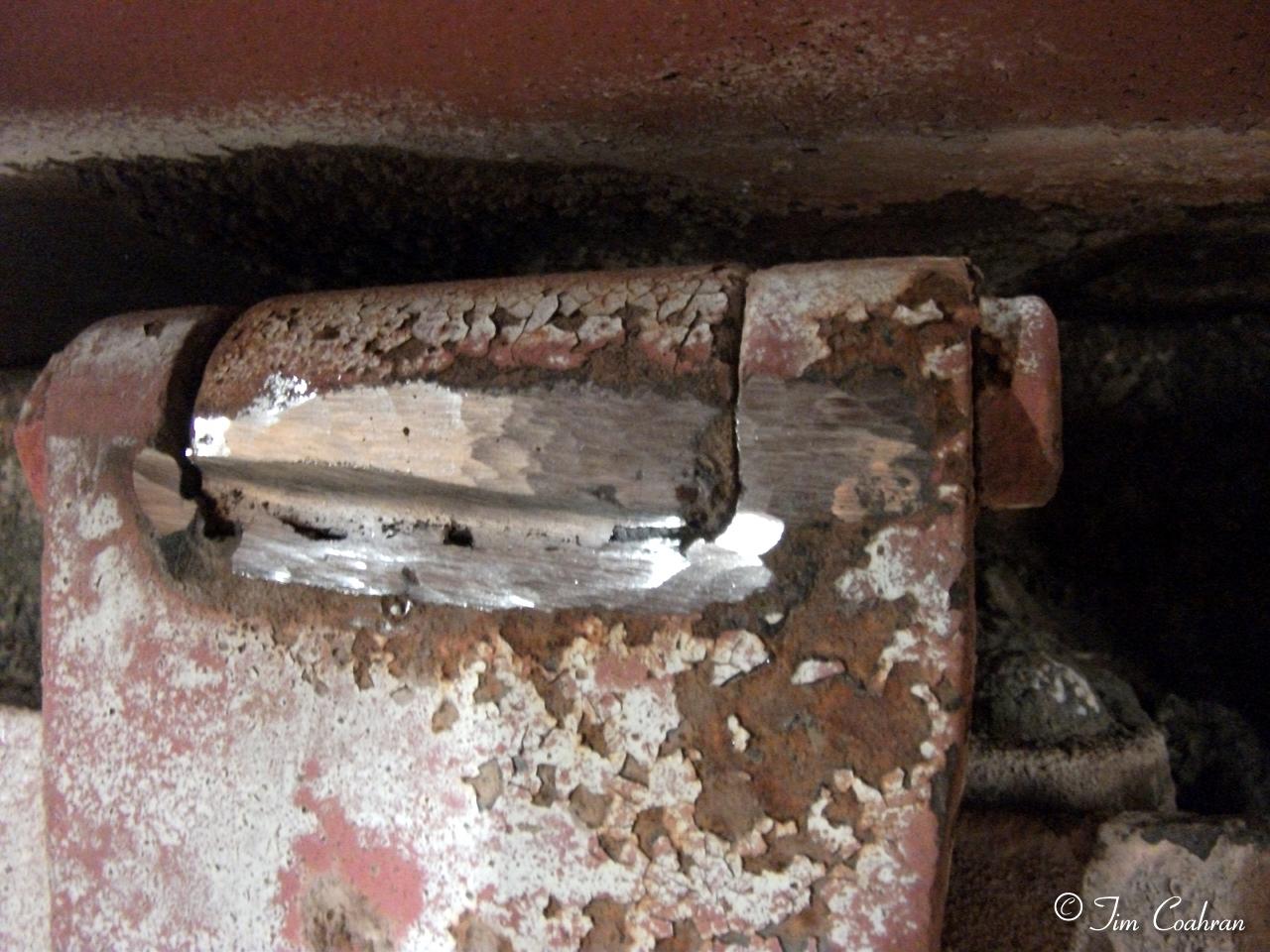

Drat! I cut a little too deep into center piece. Note mass of hardened "C" in background. |
![image](2452-Got-it-free_tn.jpg) |
![image](2454-Newly-freed_tn.jpg) |

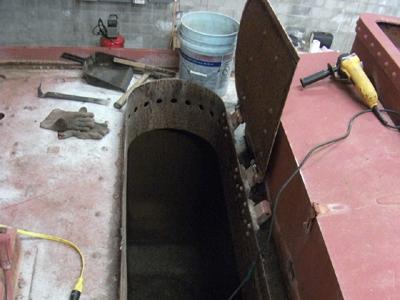

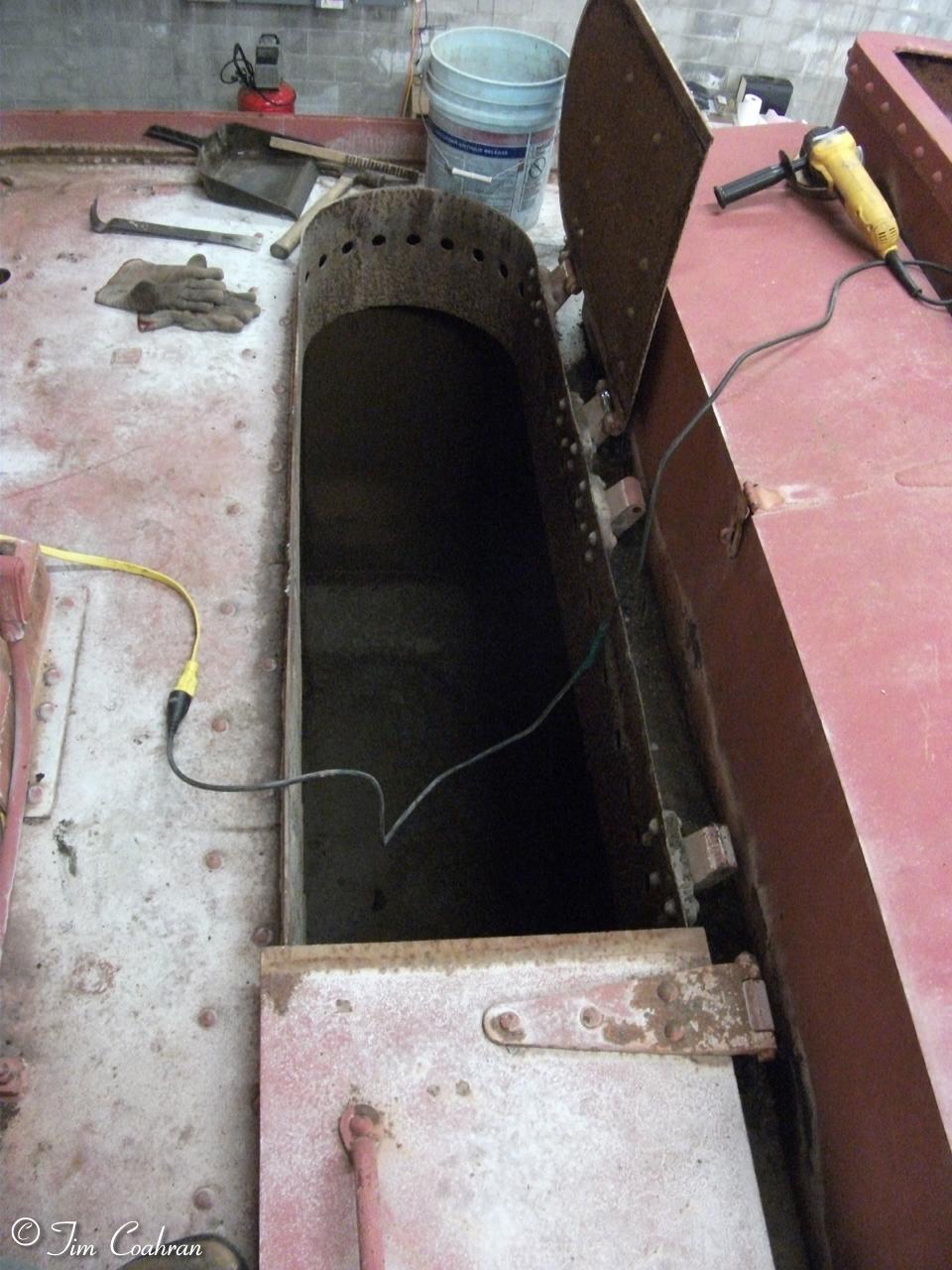

Got it free! Note remnants of other welds along left side of opening. Thanks to Art Chase for the use of his yellow grinder! |

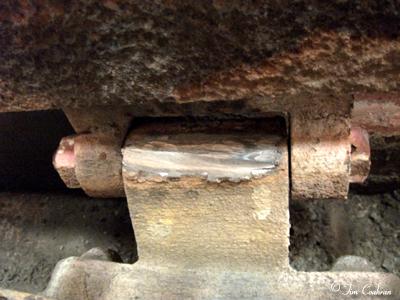

Newly freed hinge from underneath. The excess cut doesn't look too bad - can be easily filled by a good welder. |
![image](2458-Hinge-ready_tn.jpg) |
![image](2459-Fuel-oil_tn.jpg) |

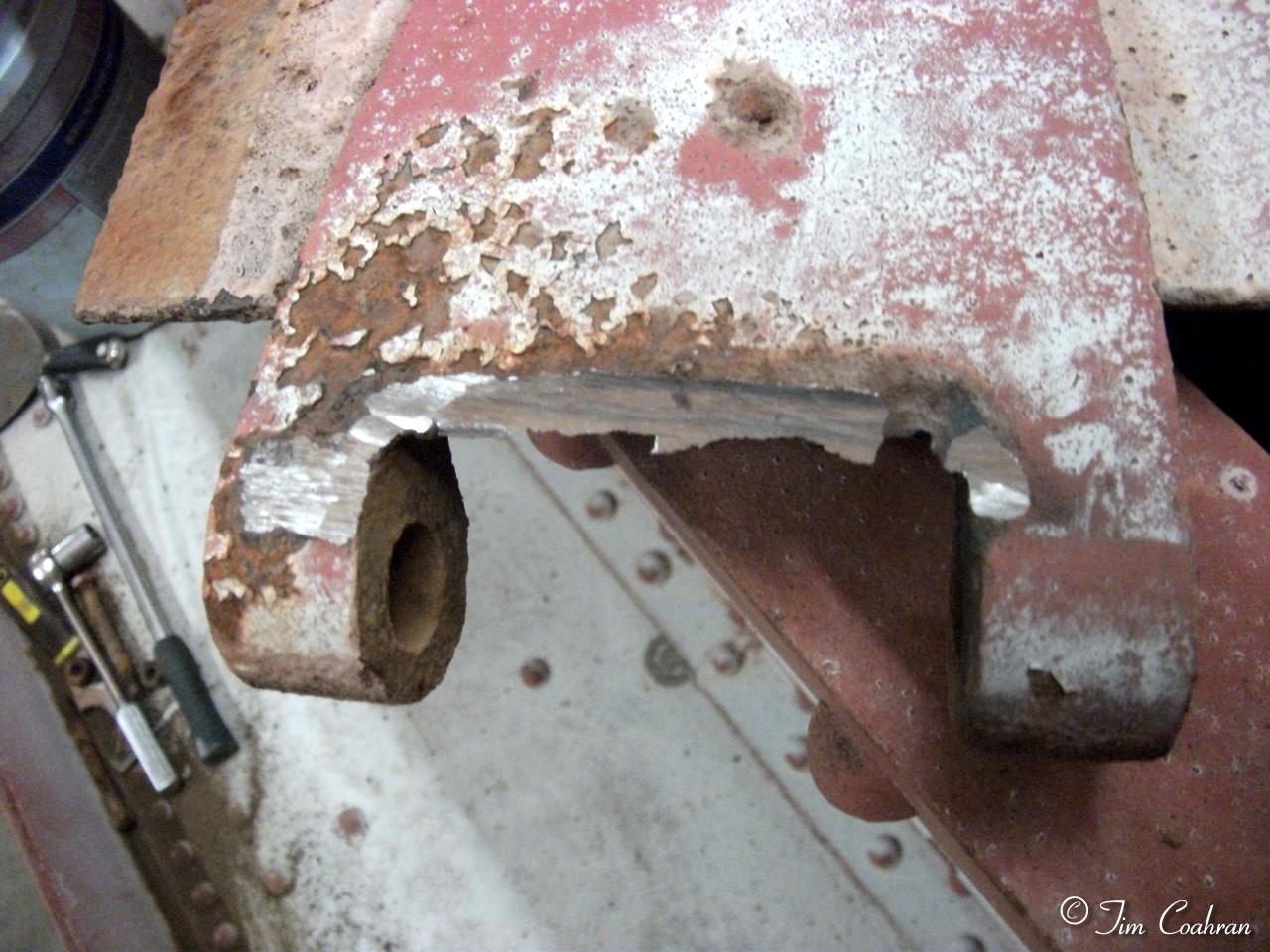

Hinge ready for deburring |

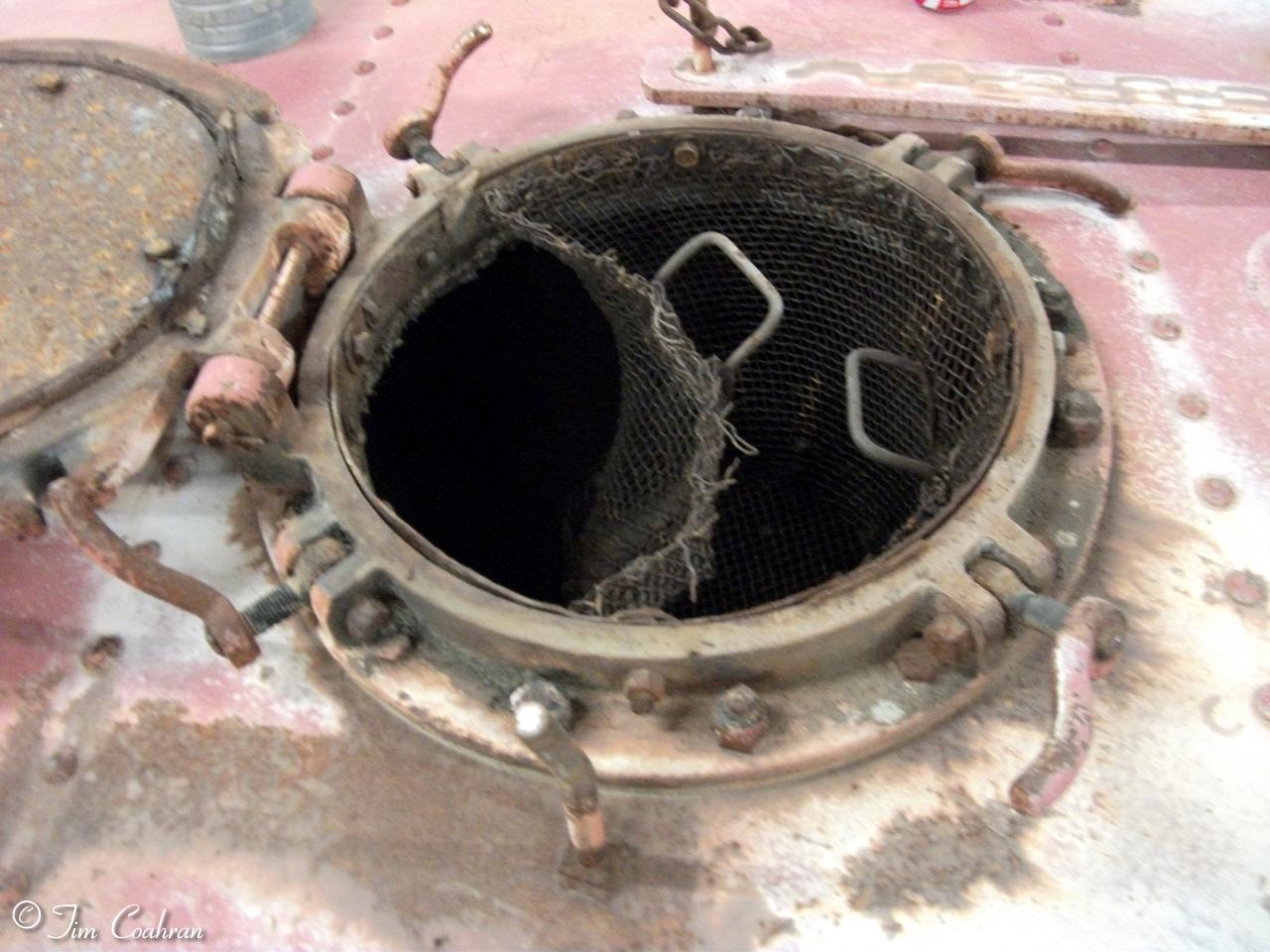

Fuel oil tank door. Screen & gasket are battered, but inside is fairly sludge-free. |
![image](2461-Alemite-in-tender_tn.jpg) |
![image](2463-Steps-down_tn.jpg) |

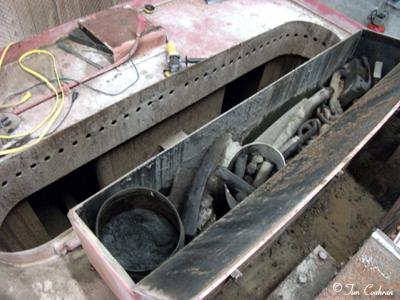

Alemite in tender toolbox. All 3 sections of water tank door are now open behind tool box. |

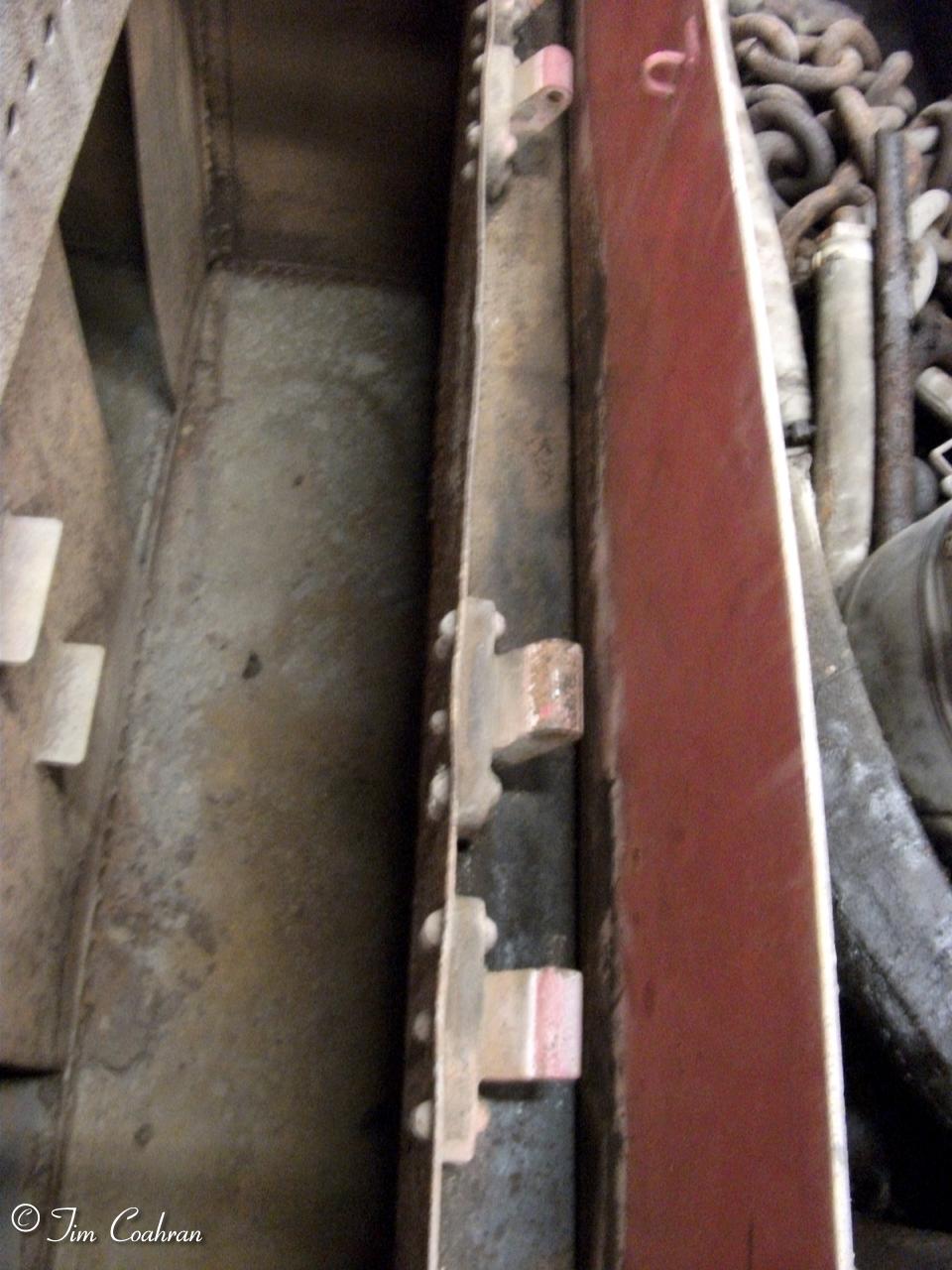

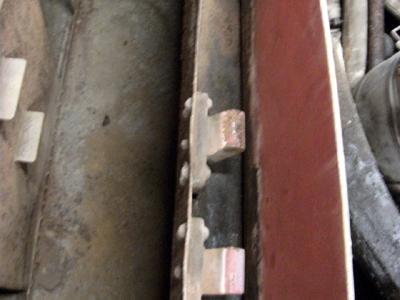

Steps down into water tank. Recently freed hinge is just off the top of this photo. |
![image](2470-All-3-water-tank_tn.jpg) |
![image](92436-Parts-marked_tn.jpg) |

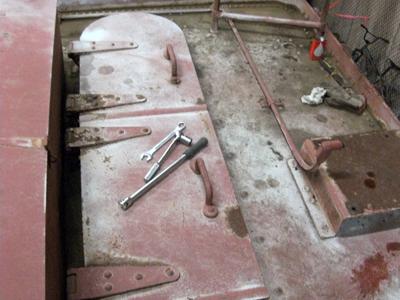

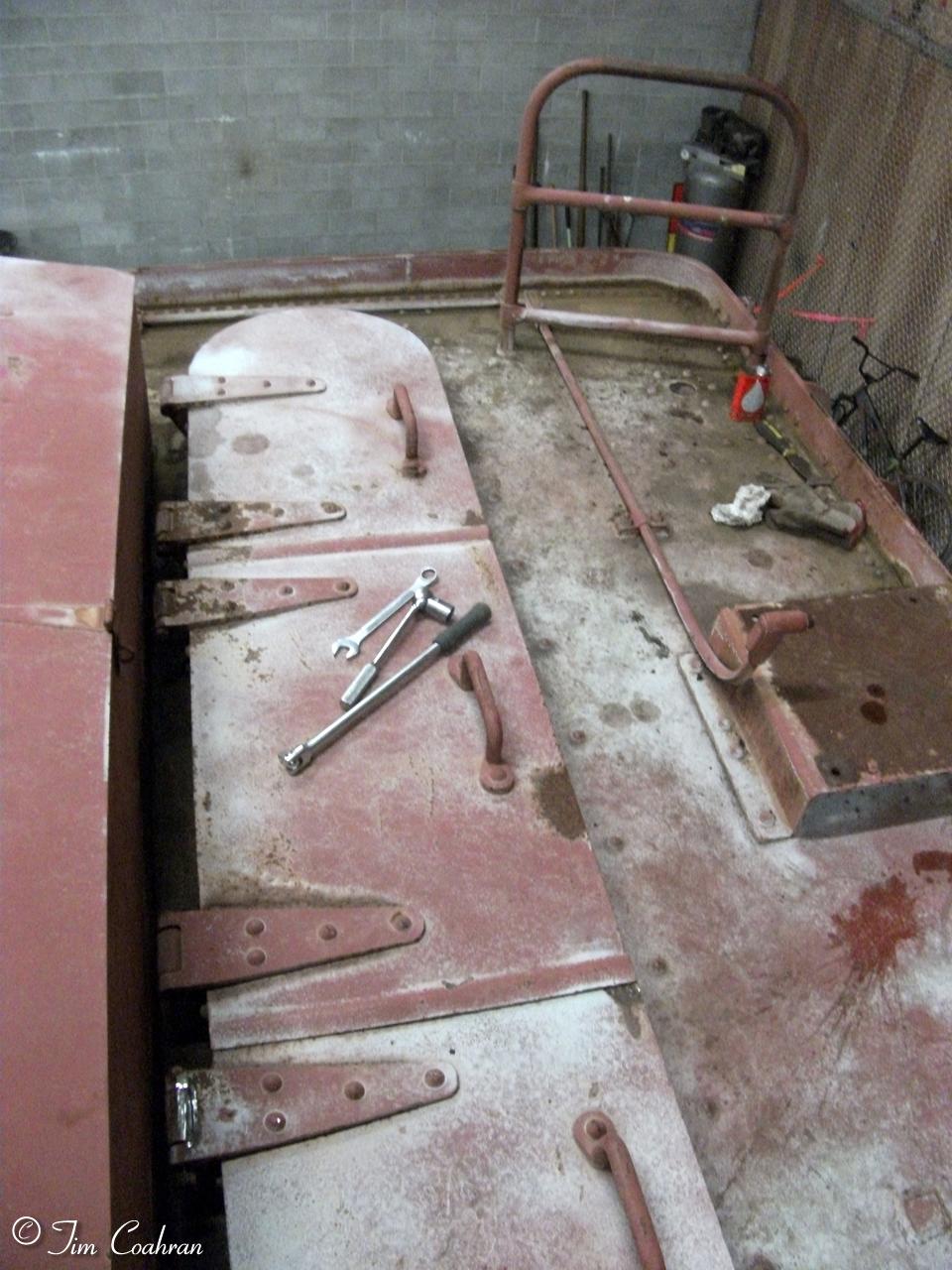

All 3 water tank doors are now functional (click to see entire vertical photo) |

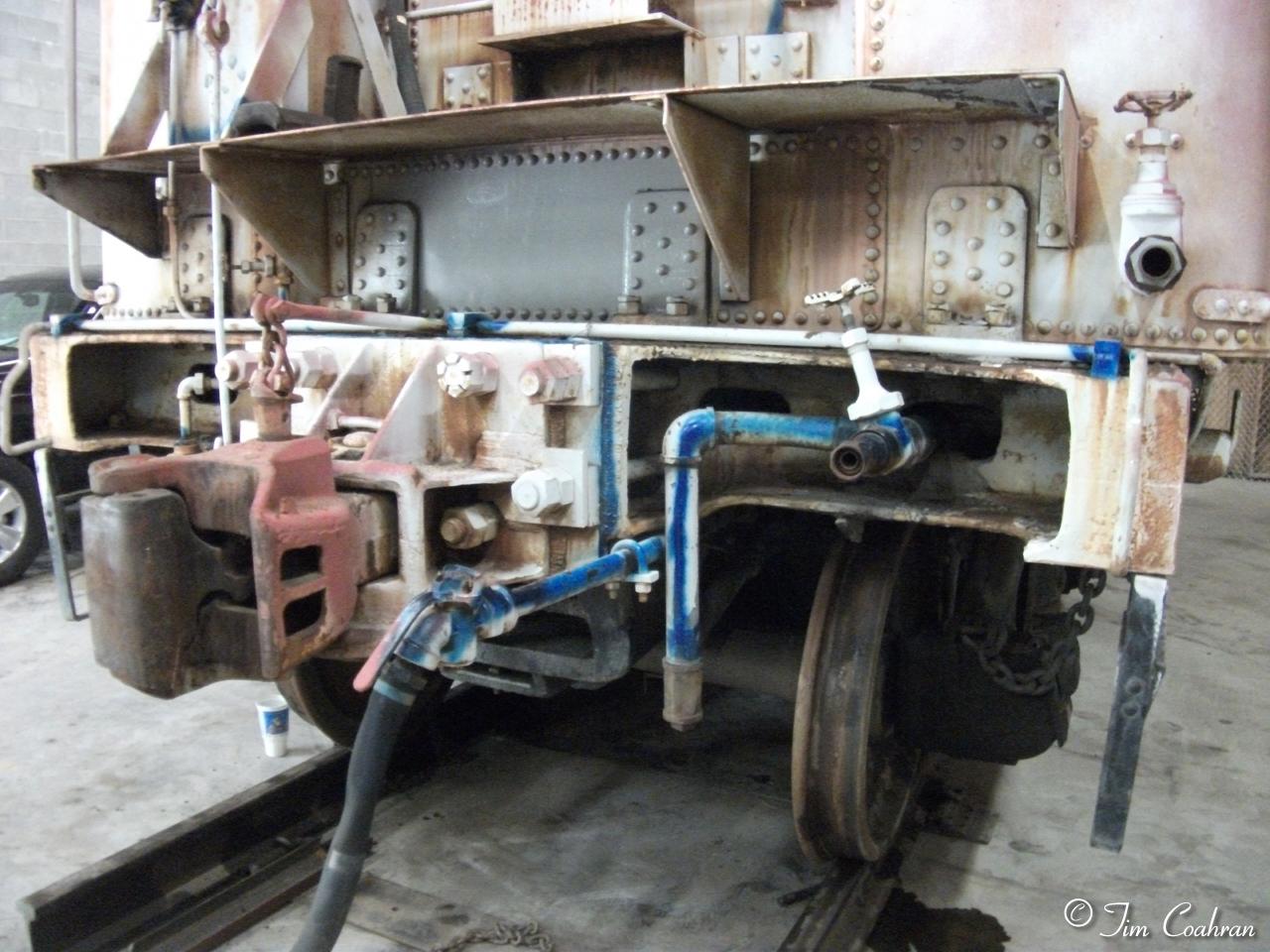

Parts marked for removal. These parts were added for use with an L/C crane after the tender had been retired from locomotive service. |
![image](92438-Tender-overview_tn.jpg) |
|

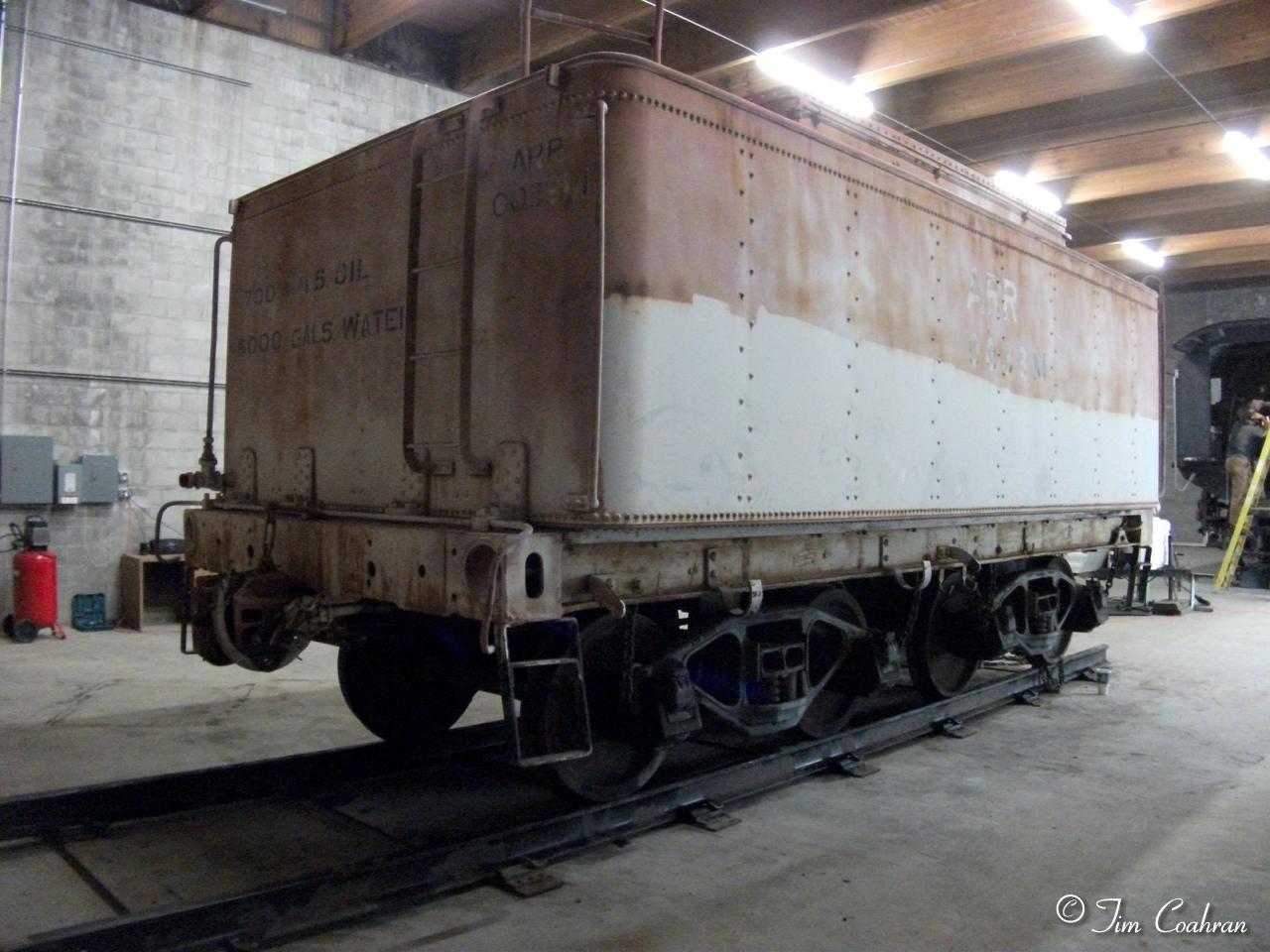

Tender overview |
|
