No. 1

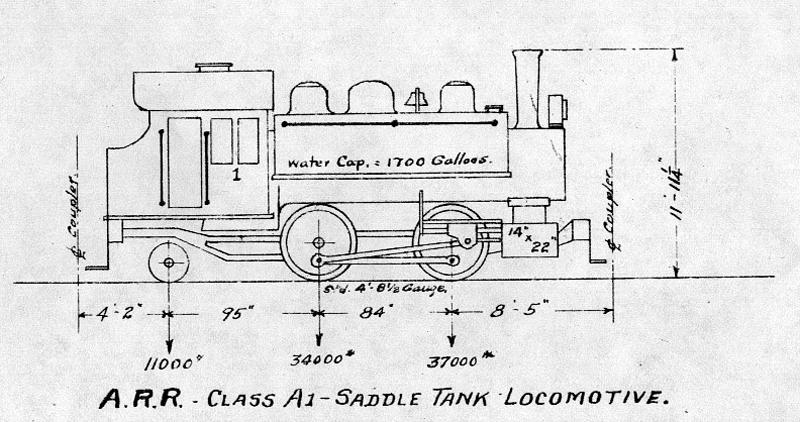

Class A1 - Saddle Tank Locomotive
-Specifications-
-Specifications-
|
Purchased from (new equipment) |
American Locomotive Company |
| Placed in Service | Anchorage 1916 |
| Estimated Life | 20 years |
| Type | Saddle Tank 0-4-2 |
| Builder | American Locomotive Company - Rogers Works |
| Cylinders | 14" x 22" |
| Dia. of Drivers | 44" |
| Wt. on Drivers | 71000# |
| Total Wt. Engine | 82000# |
| Tractive Power | 15350# |
| Hauling Capacity | 2320 Tons on Level Track |
| Valve Gear | Link Valve Gear with Sliding Valve |
| Driving Wheel Base | 7'-0" |
| Total Eng Wheel Base | 14'-11" |
| Driving Journals | 7" x 8" |
| Maximum Height | 11'-11 1/4" |
| Maximum Width | 8'-8" |
| No Tender - Saddle Tank Capacity | 1700 Gallons |
| Couplers | M.C.B. "Tower" Pocket |
| Train Length | 27'-6" |
| Pilot | None |
| Fuel | Bituminous |
Engine is supplied with Automatic Air Brakes, Steel Cab, Steel Tired Truck wheels, W.I. Frames, Hand Sander for Forward and Reverse and other usual Accessories, Oil Headlight. |
|
| Boiler - | |
| Working Pressure | 165 Lbs. |
| Heating Surface | 650 Sq. Ft. Approx. |
| Length | 12'-2 5/16" |
| Diameter | 43" |
| Number of Tubes | 106 |
| Length of Tubes | 11'-8" |
| Dia. of Tubes | 2" |
