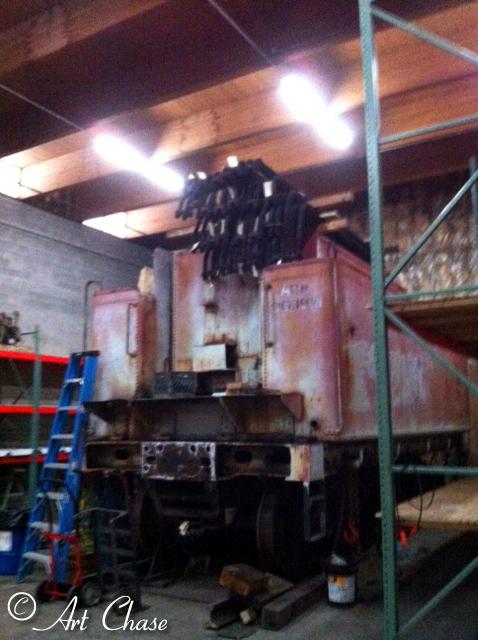

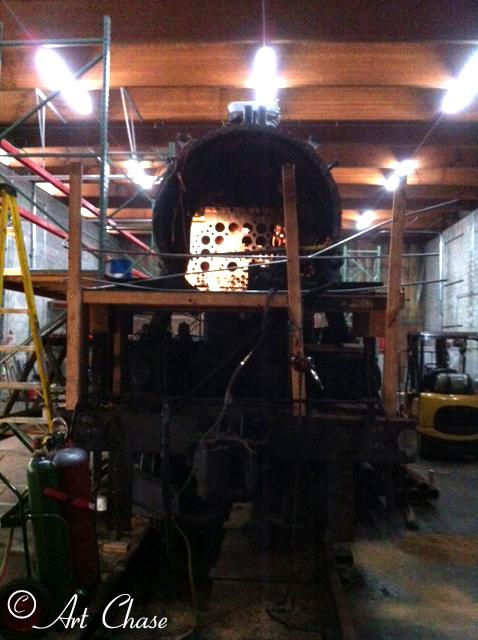

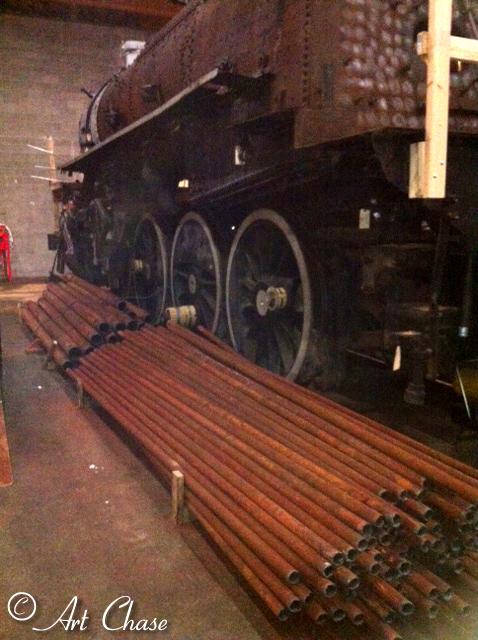

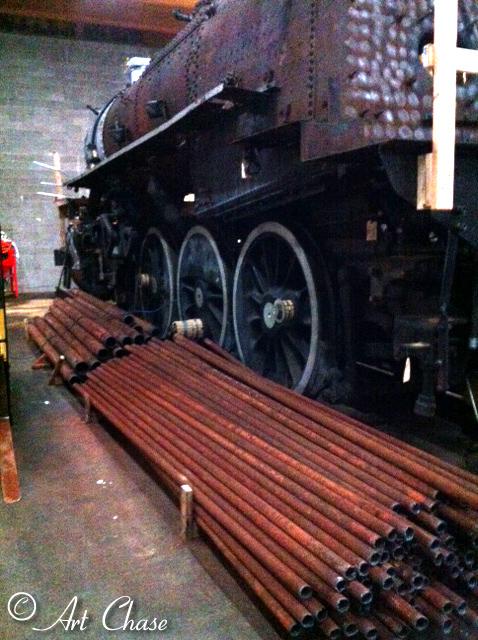

The pictures are pretty straight forward, the smoke box after the tubes/super heater, etc removed. The large tubes where the superheater tubes, and the small pipe are the 2" flues. The super heaters are what's on top of the tender. It was a long grueling day, but we all kept at it.
